Healthy Routes Demo

Introduction

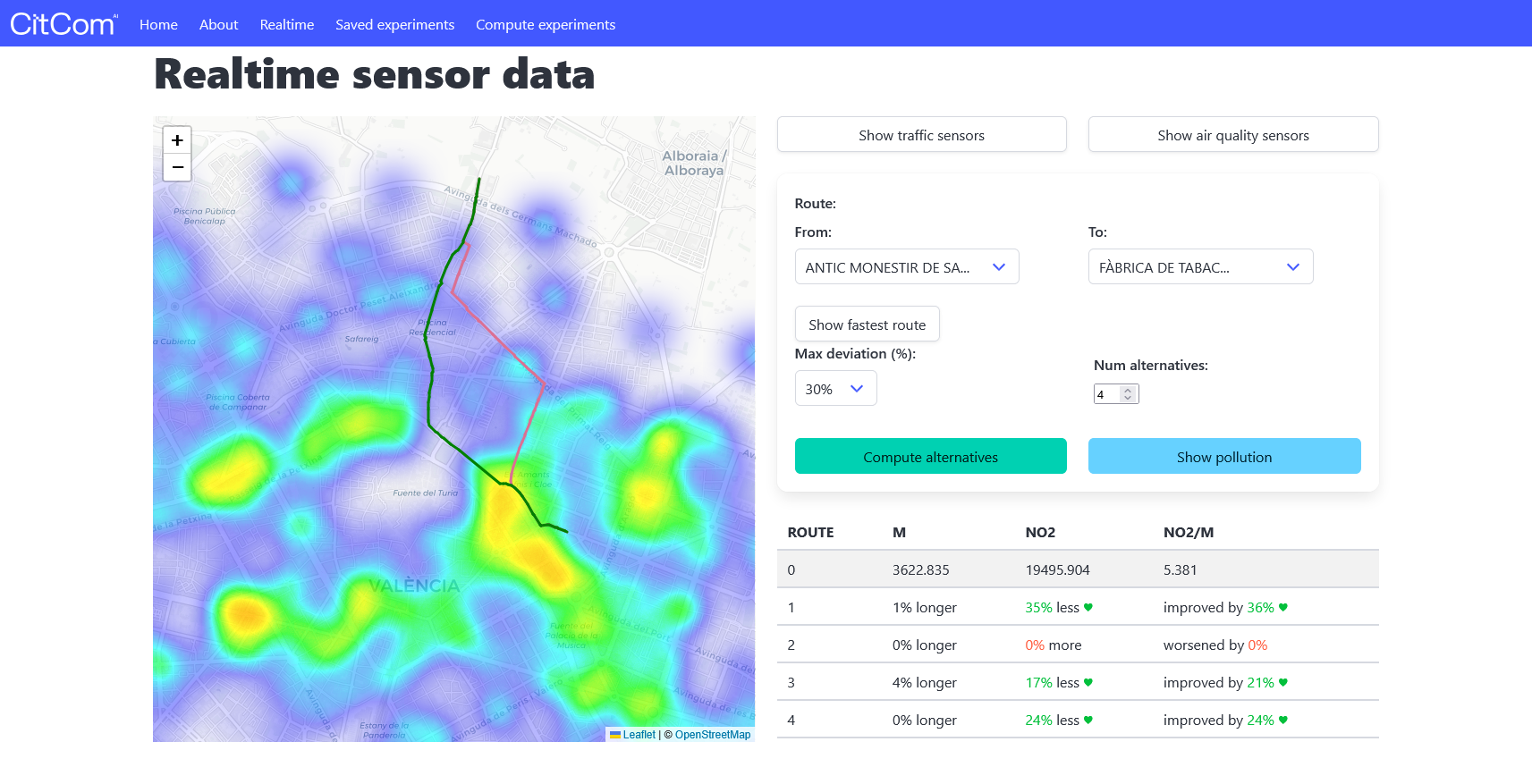

This project is a visual demo of an experiment conducted on pedestrian routes in the city of Valencia, with the goal of optimizing routes by considering pollution caused by traffic. It also visualises real‑time sensor data (traffic flow, air quality) and pollution heatmaps. Intended as a research/demo repository — not production hardened.

The demo is based on the research presented in the paper:
"Optimizing Pedestrian Paths to Minimize Exposure to Urban Pollution Through Traffic Data Analysis".

Interoperability

This demo adheres to Level 1 interoperability as defined by CitCom's interoperability guidelines. It is designed to consume data that conforms to the Smart Data Models specifications, specifically the AirQualityObserved and TrafficFlowObserved models.

Note: This demo has been tailored specifically for the city of Valencia. While it leverages the Smart Data Models specification, there are minor adaptations:

  • For AirQualityObserved entities, pollutant field names are customized. To ensure correct visualization, set the .env variable AIRQUALITY_POLLUTANT_FIELD to match the desired pollutant field. This allows you to select which pollutant is displayed on the map.
  • For TrafficFlowObserved entities, the location attribute is not directly available. Sensor locations are instead referenced from an external .csv file.

These adjustments enable the demo to work seamlessly with Valencia's available datasets while maintaining compatibility with Smart Data Models where possible.

Features

  • Map UI with route selection between monuments
  • Compute fastest route and alternatives
  • Show traffic & air quality sensors (including realtime endpoints)
  • Pollution heatmap from precomputed or realtime estimations
  • Utilities for spatial queries, kriging interpolation and scoring routes

Requirements

  • Dependencies listed in requirements.txt

Installation

  1. Clone the repo:

    git clone https://github.com/CitComAI-Hub/healthy-routes-demo.git
cd healthy-routes-demo

  2. Create the virtual environment:

If you don't have the .venv virtual environment, you can create it using the following command:

python -m venv .venv

  1. Activate the virtual environment:

    • On Windows:

      .venv\Scripts\activate
      * On macOS/Linux:
      source .venv/bin/activate

  2. Install dependencies:

    Once the virtual environment is activated, install the required dependencies:

    pip install -r requirements.txt

Running the Application

  1. Make sure the virtual environment is activated.

  2. Run the Flask server with the following command:

    flask --app demo run

  3. The server will start, and you should see the following output:

    * Serving Flask app 'demo'
* Debug mode: off
WARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead.
* Running on http://127.0.0.1:5000

  4. To view the web interface, open your browser and go to: http://127.0.0.1:5000
